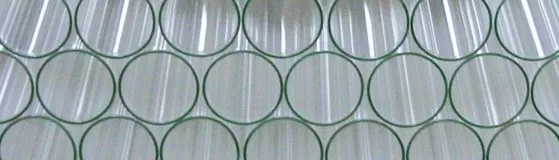

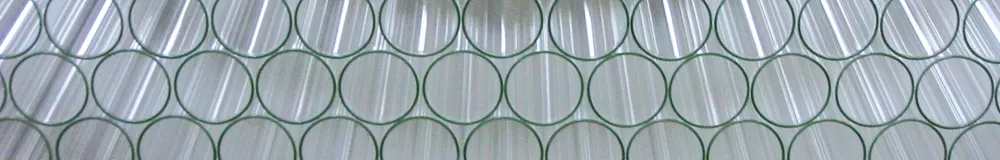

Quartz sleeves are a good investment, offering protection against air and water flow, breakage, leakage, temperature fluctuations, and environmental hazards. LightSources offer a variety of standard and custom quartz sleeves and jackets that can be applied to a range of germicidal UVC lamp types, including standard, high output (HO), and amalgam. We offer OEMs numerous options, such as open, closed (domed), flared or beaded end and fire polish finishing.
Our quartz sleeves are available in a wide array of diameters and lengths for use in air purification units, water disinfection units, photochemical reactors, and other specialized equipment
Most Commonly Used Quartz Sleeves
Inside Diameter | Outside Diameter | Wall Thickness |
mm | mm | mm |
17.0 | 19.0 | 1.00 |
18.0 | 20.5 | 1.25 |
19.6 | 22.0 | 1.20 |
20.0 | 22.0 | 1.00 |
20.0 | 22.5 | 1.25 |
20.0 | 23.0 | 1.50 |
22.0 | 24.5 | 1.25 |
22.0 | 25.0 | 1.50 |
25.0 | 28.0 | 1.50 |
26.0 | 30.0 | 2.00 |
26.4 | 30.0 | 1.80 |
30.0 | 33.0 | 1.50 |
32.0 | 36.0 | 2.00 |
34.0 | 38.0 | 2.00 |
35.0 | 38.0 | 1.50 |
42.0 | 45.0 | 1.50 |
44.0 | 48.0 | 2.00 |
45.0 | 48.0 | 1.50 |
