HCFL (T2-T12) & Subminiature (CCFL) Lamps

LCD Lighting produces both hot-cathode (HCFL) and cold cathode (CCFL) fluorescent lamps for many OEM’s worldwide.  Hot cathode lamps are found in many applications from home and retail to the the highly custom/ task oriented lamps for business and industrial applications.  Custom fluorescent lamps in business are found in OEM applications such as scanners, vision /inspection systems, graphic arts and medical devices and even the outdoor sign industry.  The HFCL style lamps can be made with internal reflectors or apertures for when more directional control is required.

CCFL style fluorescent lamps use an electrode (cylindrical metal shell) instead of a filament the hot cathode HCFL style uses. Cold cathode fluorescent lamps also include the family of neon lamps that are custom made by sign benders all over the world.   Like HCFL, CCFL’s use mercury vapor to excite the phosphor coating on the inside of the lamp to emit visable light.  Large diameter CCFL’s are most often used as architectural accents for interior alcove and general lighting applications.  Smaller diameter 15mm and under are found in neon signs, back lighting, graphic arts, scanners and other specialized applications.

Whether HCFL or CCFL the lamps – Tap our knowledge of lamps.

Industrial/Commercial HFCL

LCD Lighting manufactures a wide variety of standard and custom linear fluorescent lamp.  We manufacturer lamps used worldwide in the retail and industrial settings from the curing and graphic arts industry to supplying the needs of professionals in the aquarium and transportation market.  Need help customizing a standard lamp or designing  new lamp style- give us a call.  Our experience is deep from designing lamps for quality control visions systems to new style of medical lamps,  we work with designers to make it.   Give us a call.

 HCFL – Technical and Performance Specifications:

 Size T2 (6 mm) , T4 (12 mm), T5 (16 mm), T6 (19 mm), T8 (25 mm), T12 (38 mm)
Length 4 Inches to 120 Inches
Options Reflector or Aperture- standard and custom
Phosphors Standard or custom blended
Shape Linear, Circle, U-shape, L-Shape, Twin-Tube (TT-CFL), Rectangular (Towel Bar)
Electrical LCDL Engineering with work with OEMs for proper electrical lamp design with intended ballasts, inverters and duty cycles.
Bases Bi-Pin (G13), RDC (R17d), Single Pin (Fa8), various CFL and custom bases and Leadwire and harness assemblies.
External Options silicone coating, thermal jacket or Teflon sleeving.

Specialty/Avionic – Hot Cathode Fluorescent & CCFL Lamps

LCD Lighting manufactures miniature lamps for avionic displays and cabin lighting in HFCL and CCFL styles.  Typically these are custom multiple bend lamp configuration used to backlight liquid crystal displays (LCD), as well as indirect cabin lighting, passenger and crew reading lights, galley and lavatory lighting, entry lighting, cockpit applications, cargo areas, wing inspection lights, exterior emergency lighting, landing lights and many other locations.

  Specialty/Avionic HFCL Specialty/Avionic CCFL
Size T2 (6 mm) , T4 (12 mm), T5 (16 mm), T6 (19 mm), T8 (25 mm), T12 (38 mm) 6 mm , 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 15 mm, 18 mm, 20mm
Length 4 Inches to 120 Inches 4 Inches to 72 Inches (Lengths on bent lamps may be increased by splicing glass tubes together).
Options Reflector or Aperture- standard and custom N/A
Phosphors Phosphors: custom blended or standard Tri band phosphors, Full Spectrum or in any one of the multitude of phosphor colors available.
Shape Linear, Circle, U-shape, L-Shape, Twin-Tube (TT-CFL), Rectangular (Towel Bar) Linear, Serpentine, Grid – Interlocking, U-shape, Rectangular
Electrical LCDL Engineering with work with OEMs for proper electrical lamp design with intended ballasts, inverters and duty cycles.
Bases Bi-Pin (G13), RDC (R17d), Single Pin (Fa8), various CFL and custom bases and Leadwire and harness assemblies. Custom  bases, Leads/Connectors, Flying Leads,  lamp leads.
External Options silicone coating, thermal jacket or Teflon sleeving heater wire.

Subminiature CCFL Lamp

Smaller miniature and subminiature cold cathode (CCFL) “straw” lamps and are the premier choice for backlighting, entertainment, and liquid crystal displays (LCDs) in numerous commercial, civil, military, and space avionics information systems. These lamps allow for new opportunities for low profile applications where straight or various bent  U, L, S, or rectangular fluorescent lamps are needed.

  Subminiature CCFL
Size 2 mm , 2.4 mm, 2.6 mm, 6.0 mm, 3.8 mm, 4.8 mm, 6.5 mm, 8.0 mm
Length 50 mm to 500 mm
Options Reflector or Aperture- standard and custom
Phosphors Custom blended or standard Tri band phosphors, Full Spectrum or in any one of the multitude of phosphor colors available.
Shape Linear, U-shape,  Serpentine, L-shape, S-shape,  Rectangular
Electrical LCDL Engineering with work with OEMs for proper electrical lamp design with intended ballasts, inverters and duty cycles.
Bases Custom  bases, Leads/Connectors, Flying Leads,  lamp leads.
External Options heater wire

PL Compact lamps

Compact fluorescent lamps for specialty lamps provide high light output (lm/watt) without consuming high energy or producing excessive heat as compared to incandescent lamps of comparable light output- helps reduce maintenance costs.

We offer many standard and custom designs. With the flexibility of a dual /twin tube design – lamp designers have access to many custom configurations – Clients can choose wattage, shape, size, and standard or special arc lengths and the full range of specialty phosphors from UVA/ UVB and actinic phosphors to lamps OEM styles with two different phosphors (one in each tube)- It’s like having two bulbs in one!  Let us know what you want to design.

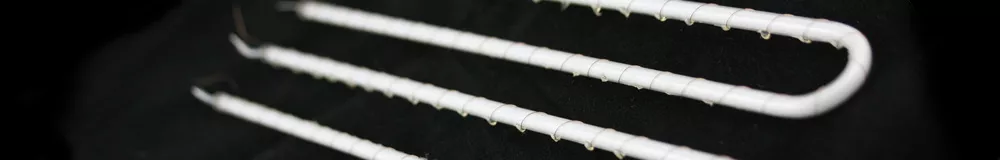

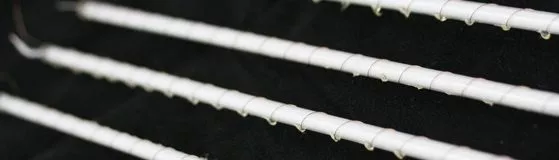

Sub-Mini Bent Lamps for Liquid Crystal Displays

Bent lamps with fewer lamp-ends improve the efficiency of liquid crystal displays. Because one of our U-lamps can replace two straight lamps, the ballast design and dimming circuitry can be simplified. This allows the display area to be made larger in comparison to the overall case size.
